Interior Assembly Manual for 1970

Discussion in 'General Ranchero Help' started by Basstrix, Jul 5, 2026.

  1. Basstrix

    Basstrix In Maximum Overdrive BRONZE MEMBER

    Messages:
    1,476
    Location:
    Phoenix, AZ
    I am getting back to work on my 71 and looking at assembly manuals. This was purchased with most everything removed from interior and in boxes. I have a full set of 1971 Ford Service Manuals that cover some of the assembly, but doesn't seem to be complete.

    Do any of you have experience with the Jim Osborn publication Titled "1970 Ford Interior Assembly Manual Ranchero Fairlane Torino Montego Cyclone". Wanting to know how complete this is, in comparison to the Service Manual. I'm primarily interested in dash components. I have the 71-72 Mustang Body Assembly Manual from same publisher and it covers quite a bit more than the Service Manual. It's also my understanding that 70 and 71 should be fairly similar. Any input on this literature or recommendation on some other literature/pdf files is apprecatied.

  2. Basstrix

    Basstrix In Maximum Overdrive BRONZE MEMBER

    Messages:
    1,476
    Location:
    Phoenix, AZ

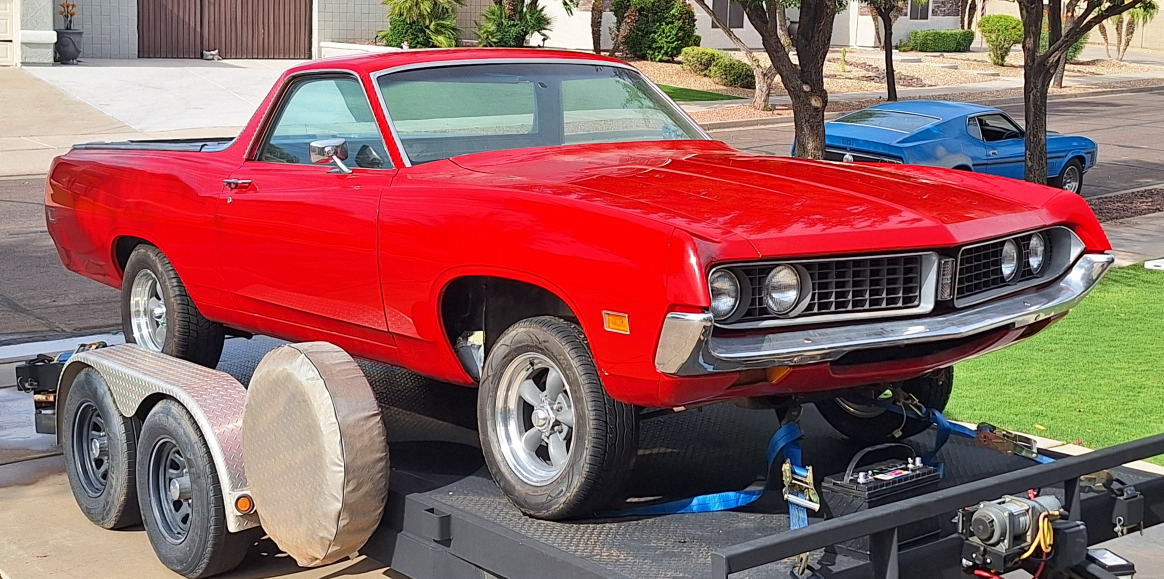

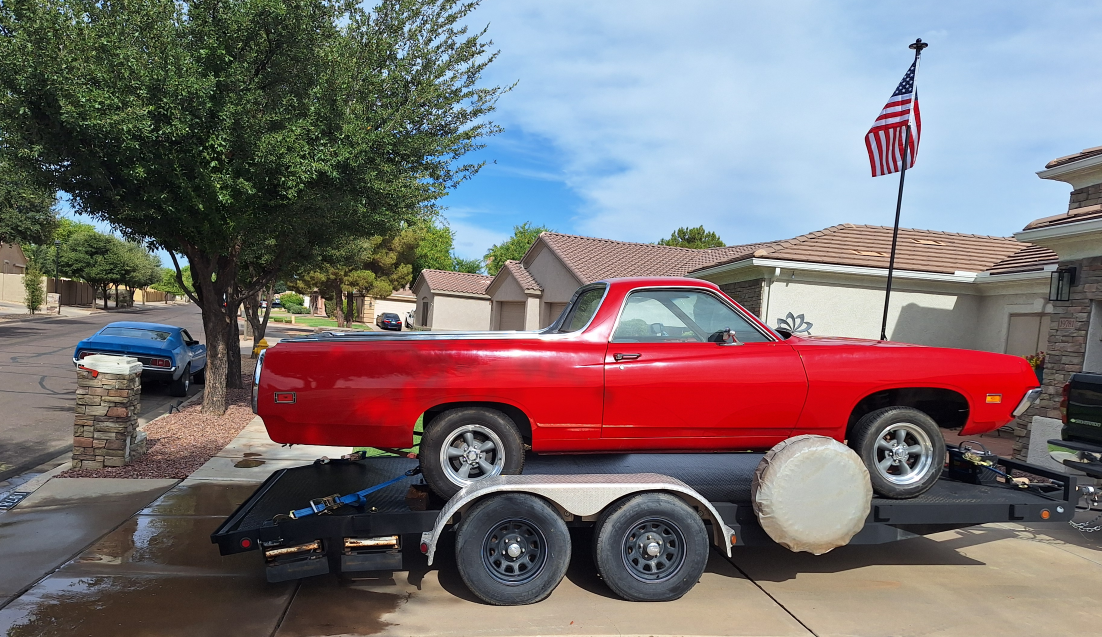

    Some pictures just before unloading it...been on this trailer since 2016![​IMG]
    [​IMG]
